Vector Optics

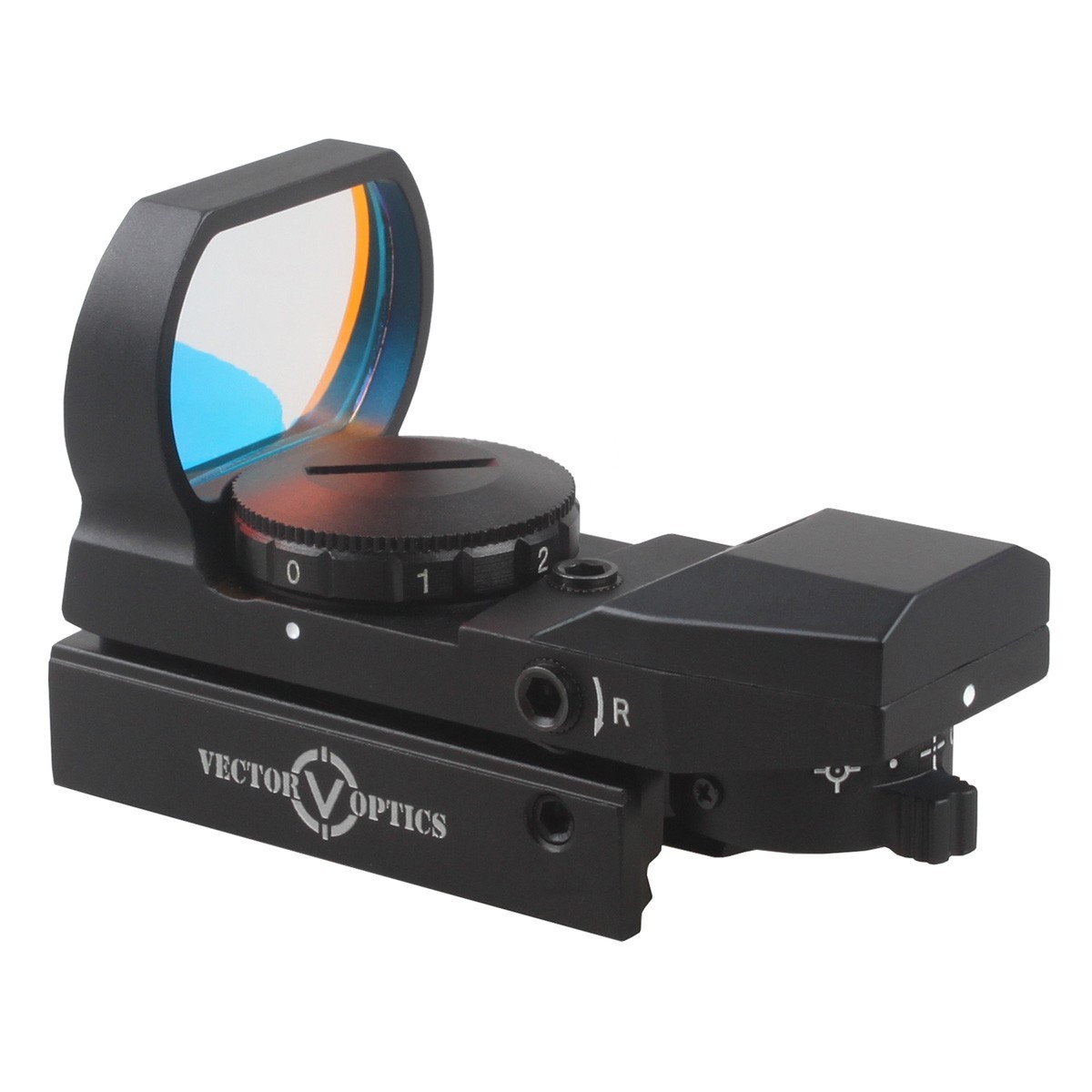

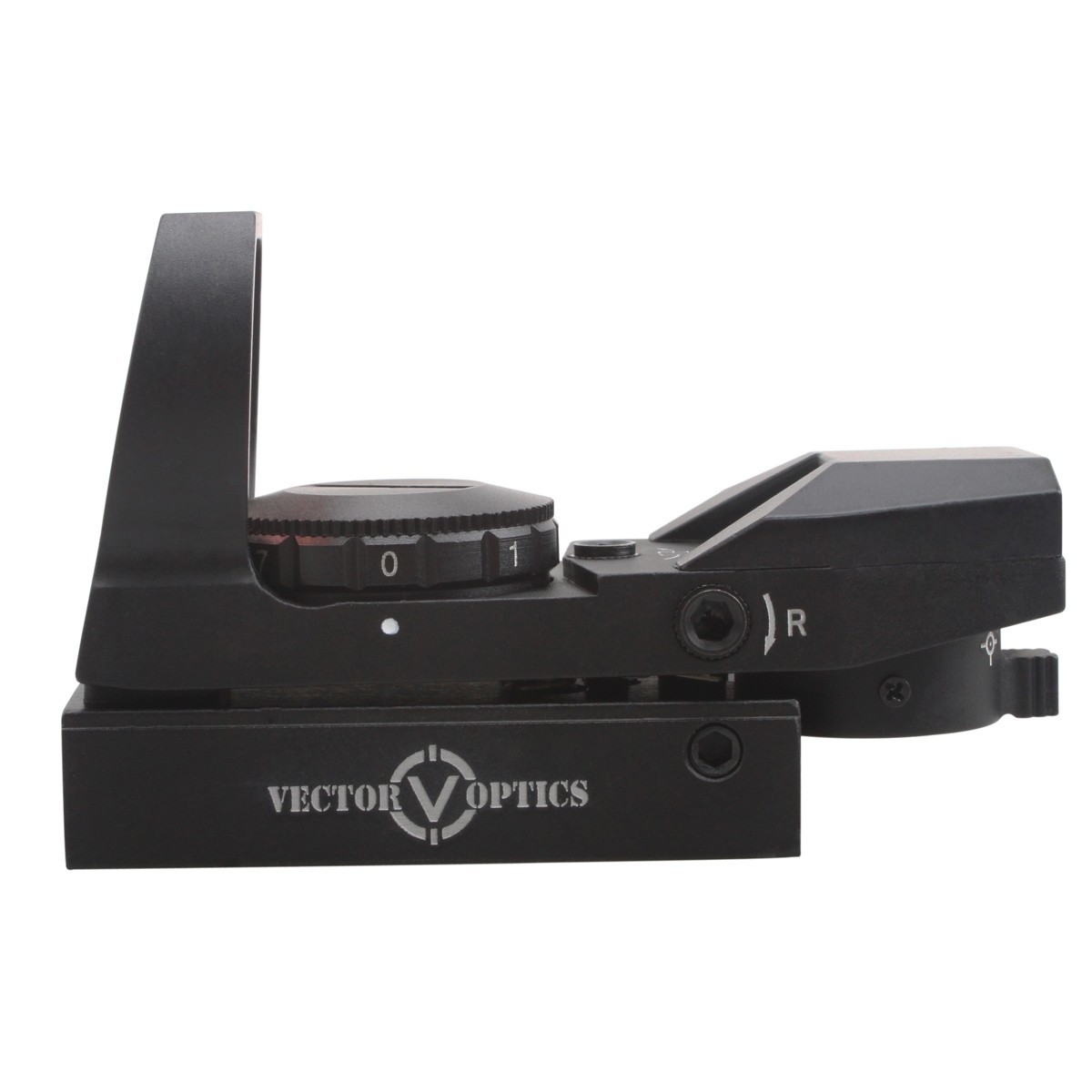

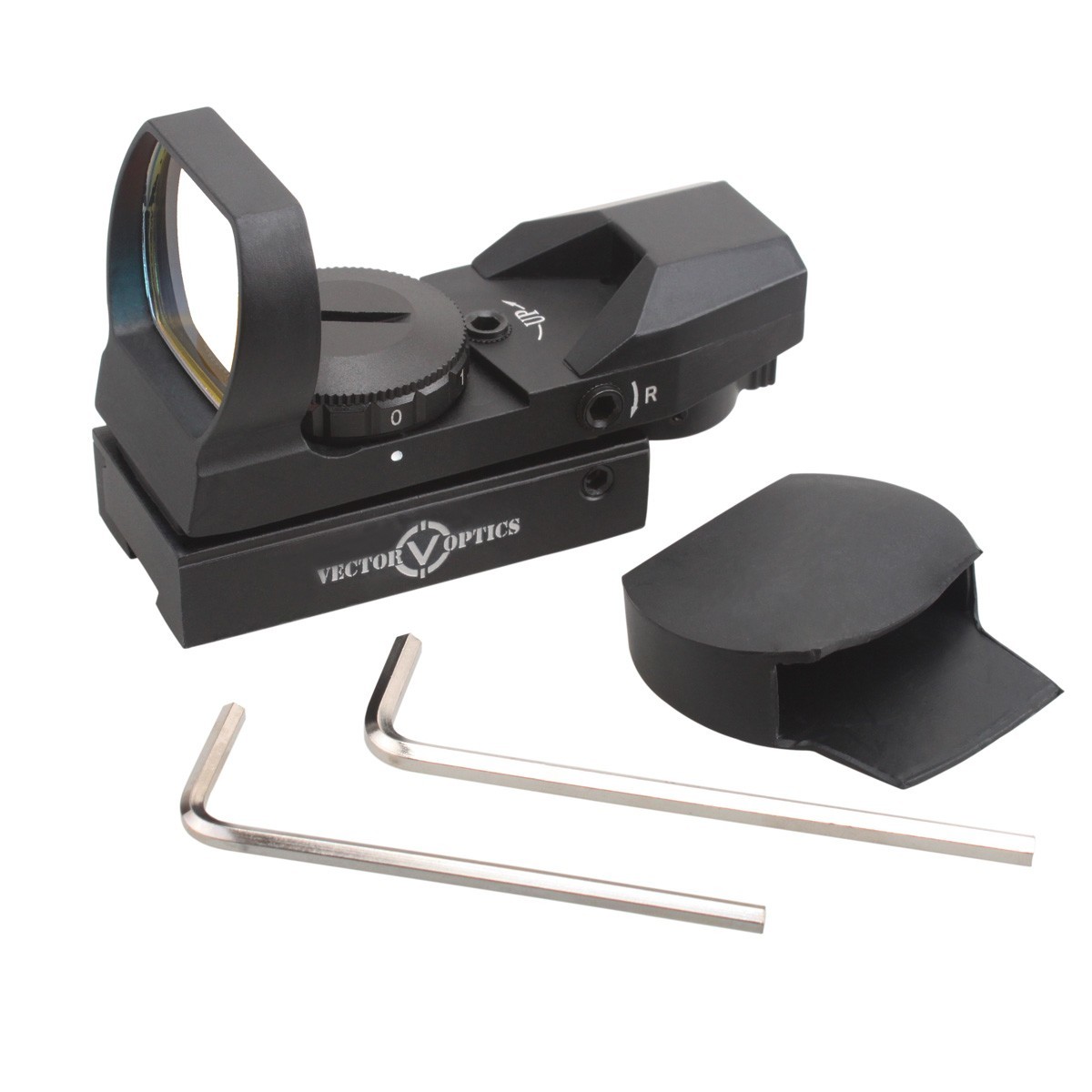

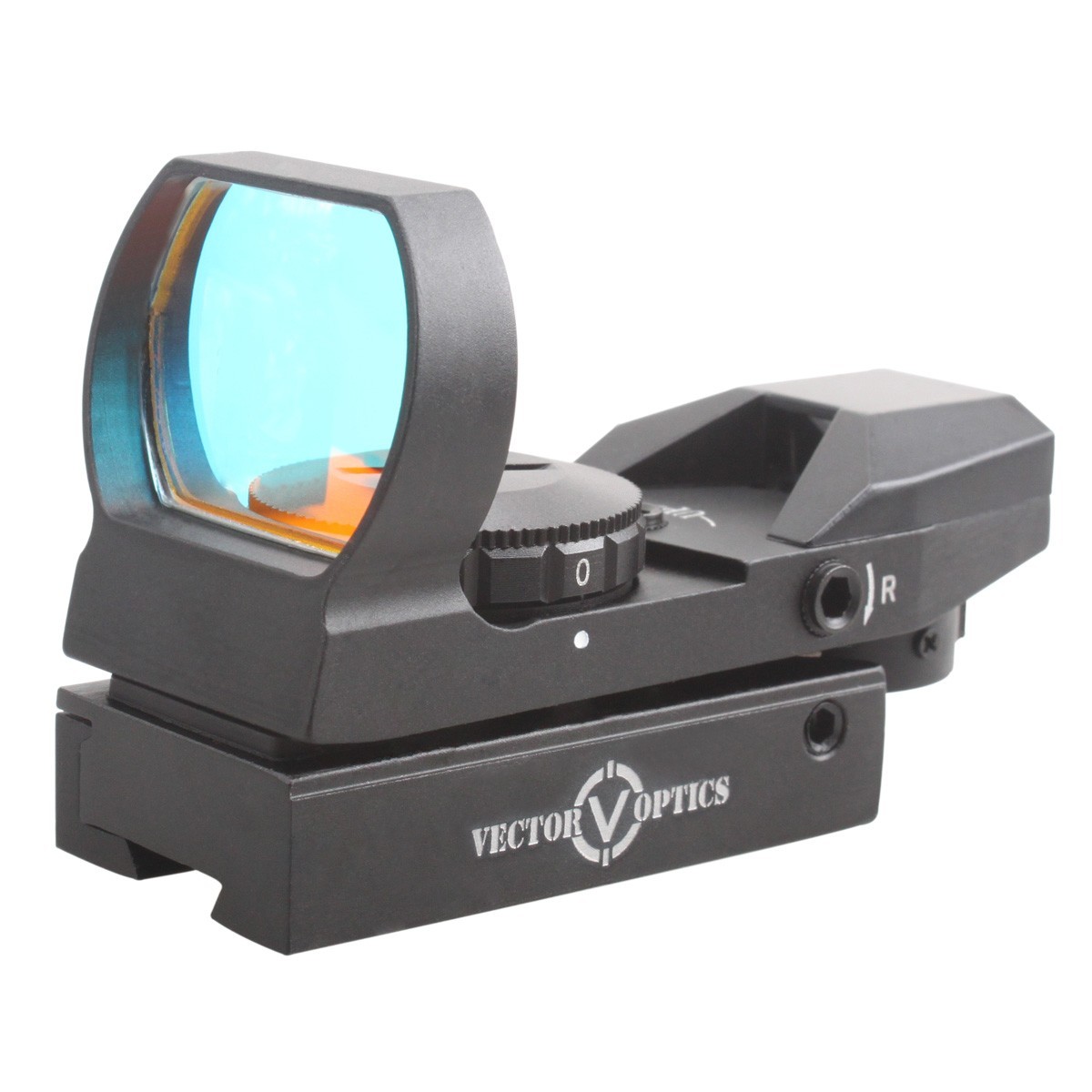

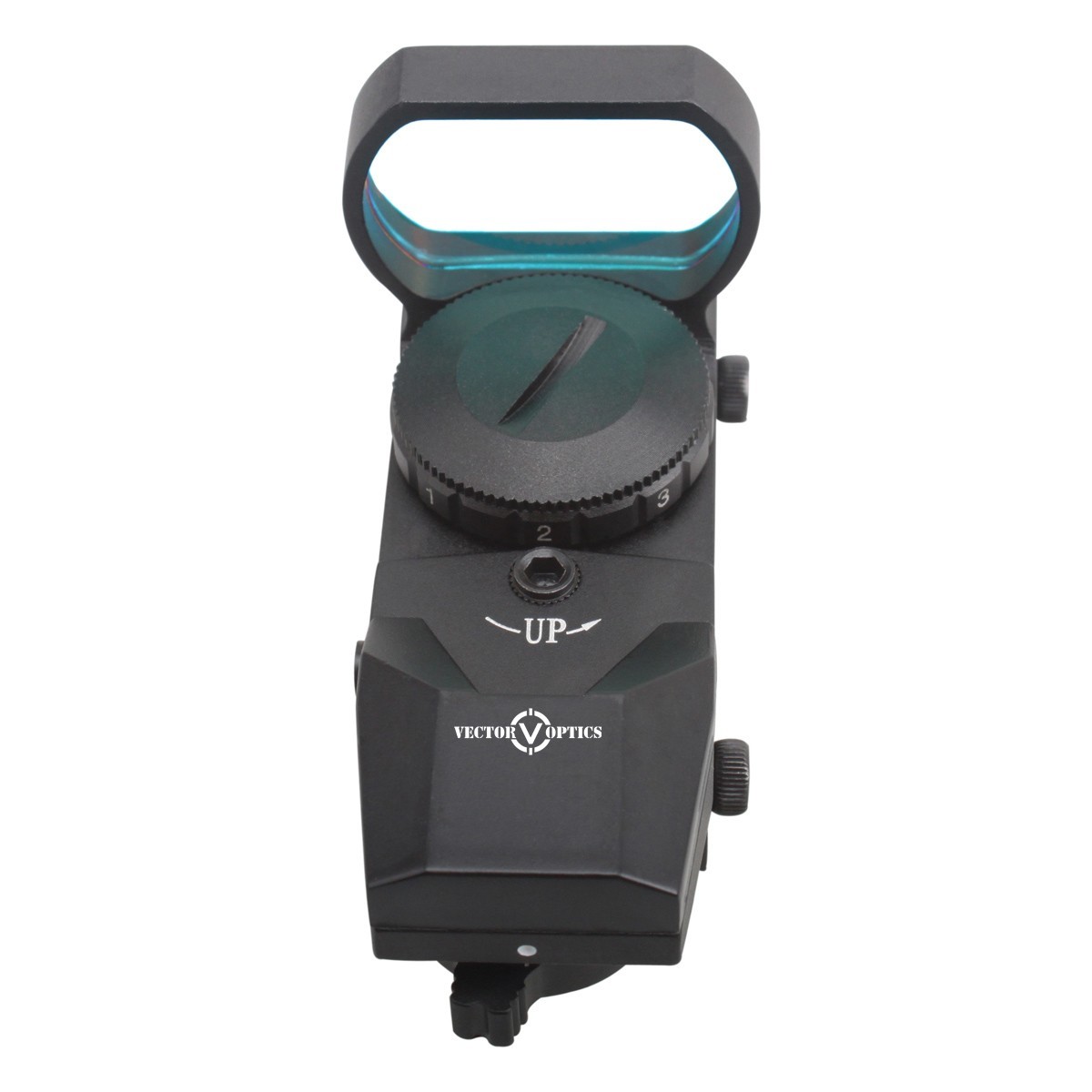

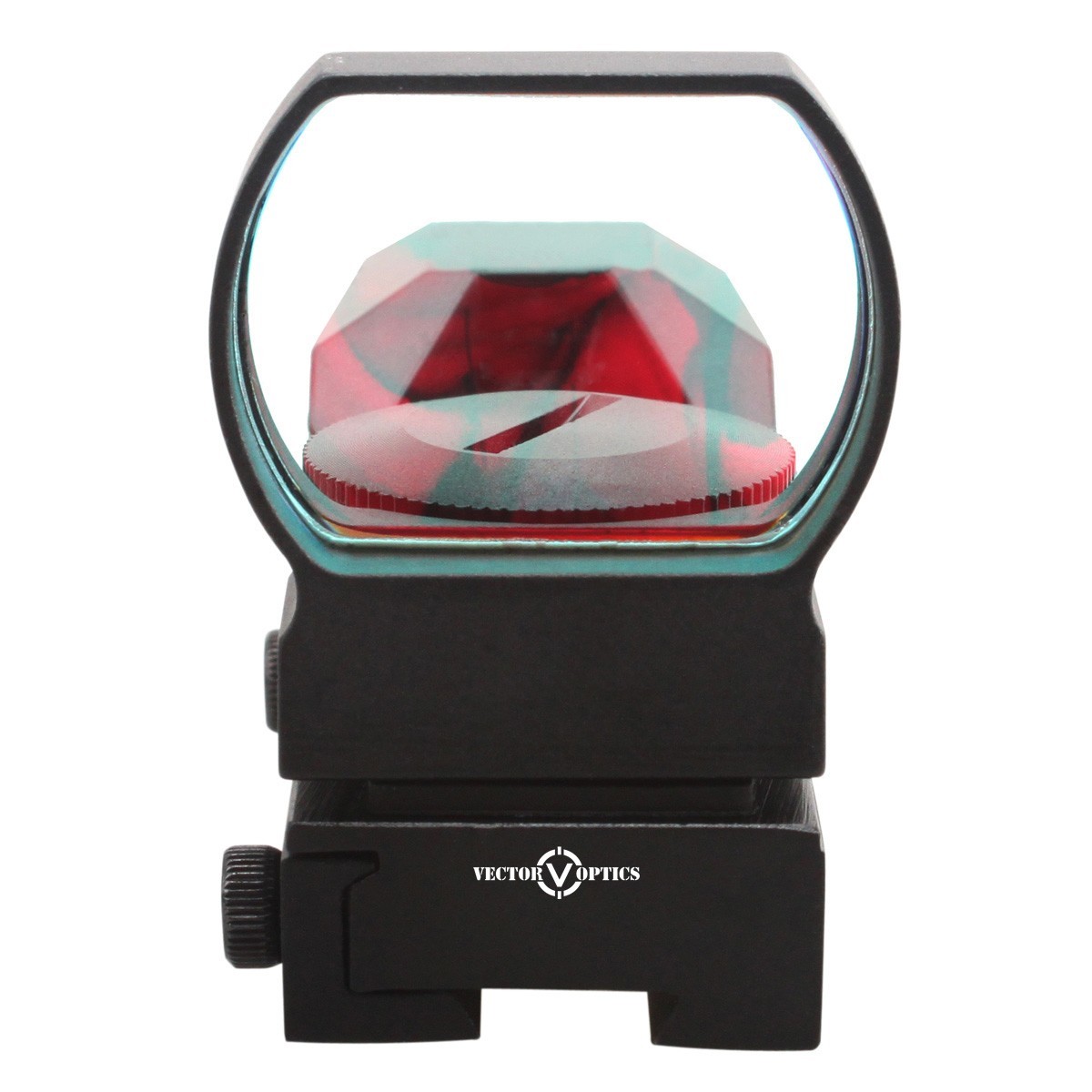

IMP 1x23x34 Reflex Sight Dovetail

11mm Dovetail Mount Base, 4x Reticles, 7 Levels of Brightness, Reticle Lock System.


  • Magnification: N/A
  • Objective Lens Dia: 23x34mm
  • Length: 80mm (3.1 inch)
  • Width: 38mm (1.5 inch)
  • Weight (net): 110g (3.9 ounce)
  • Eye Relief: Free
  • Field of View (M@ 100M): 15.7
  • Optics Coating: Multi Coated
  • Click Value: 1 MOA
  • Reticle: 4 patterns
  • Elevation Range: 40 MOA
  • Windage Range: 40 MOA
  • Illumination: 7 levels red
  • Battery: CR2032
  • Mounting: 11mm dovetail
  • Reticle: Four kinds of reticles; reticle exchange with audible click
  • Shock tested to 700g, Rain Proof and Fog Proof
  • High quality 6063 T6 aircraft grade aluminum
  • With reticle lock feature
  • Integrated 11mm dovetail mount
  • To exchange battery:
  • Use coin to release the cap
  • Take out the used battery
  • Exchange with 1 pc CR2032 battery
  • Refasten the cap


Barcode # SCRD-18B
Brand Vector Optics
Unit Of Measure ea
