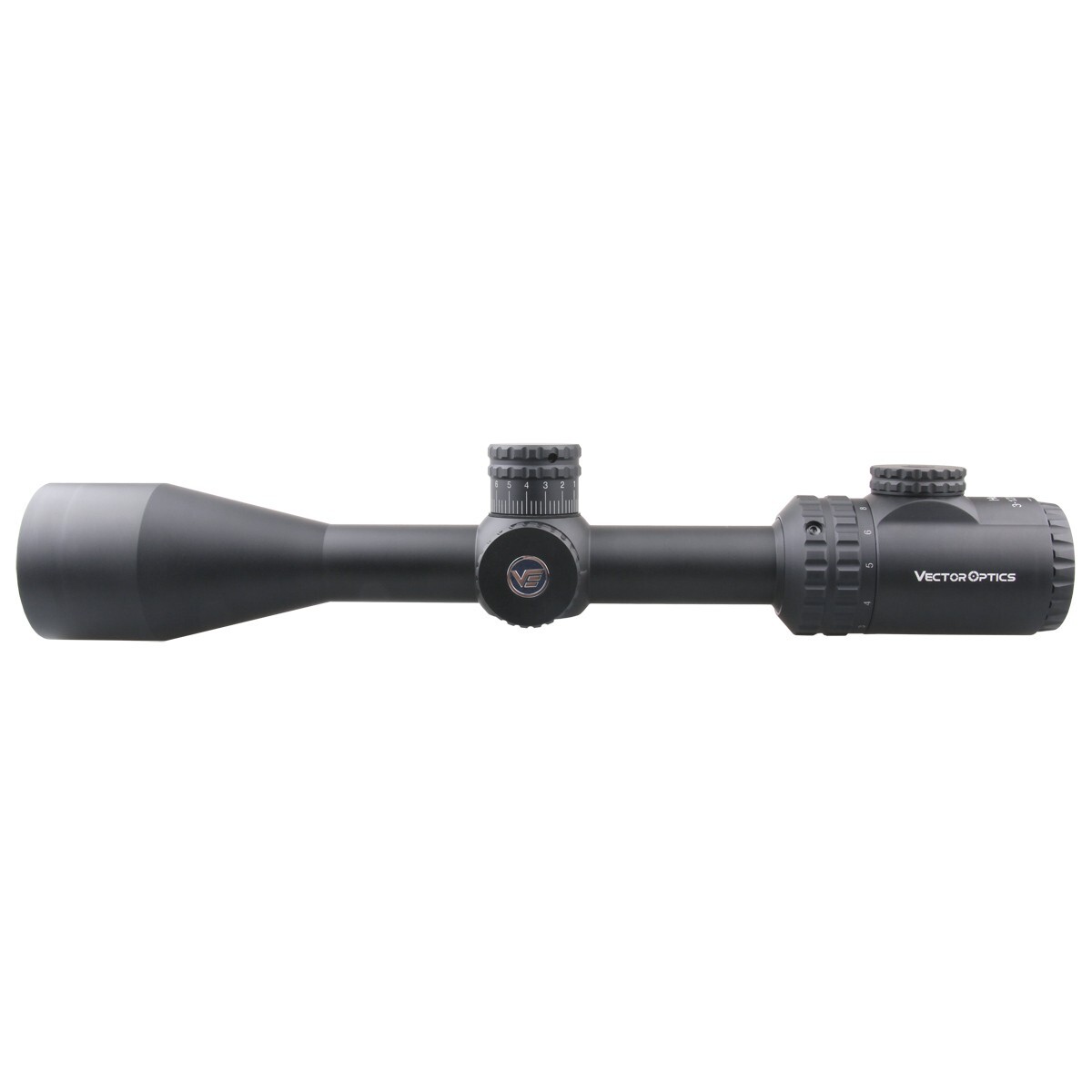

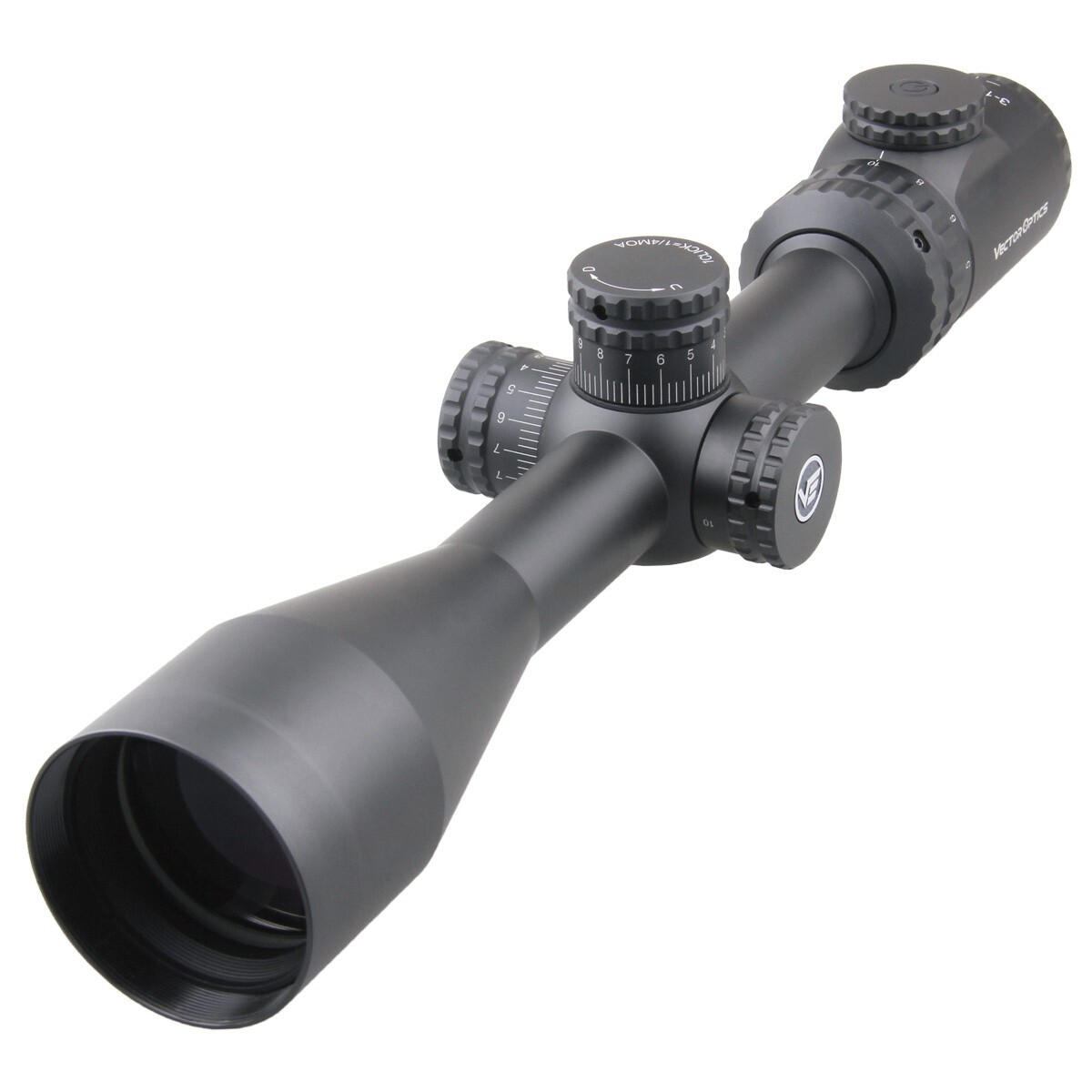

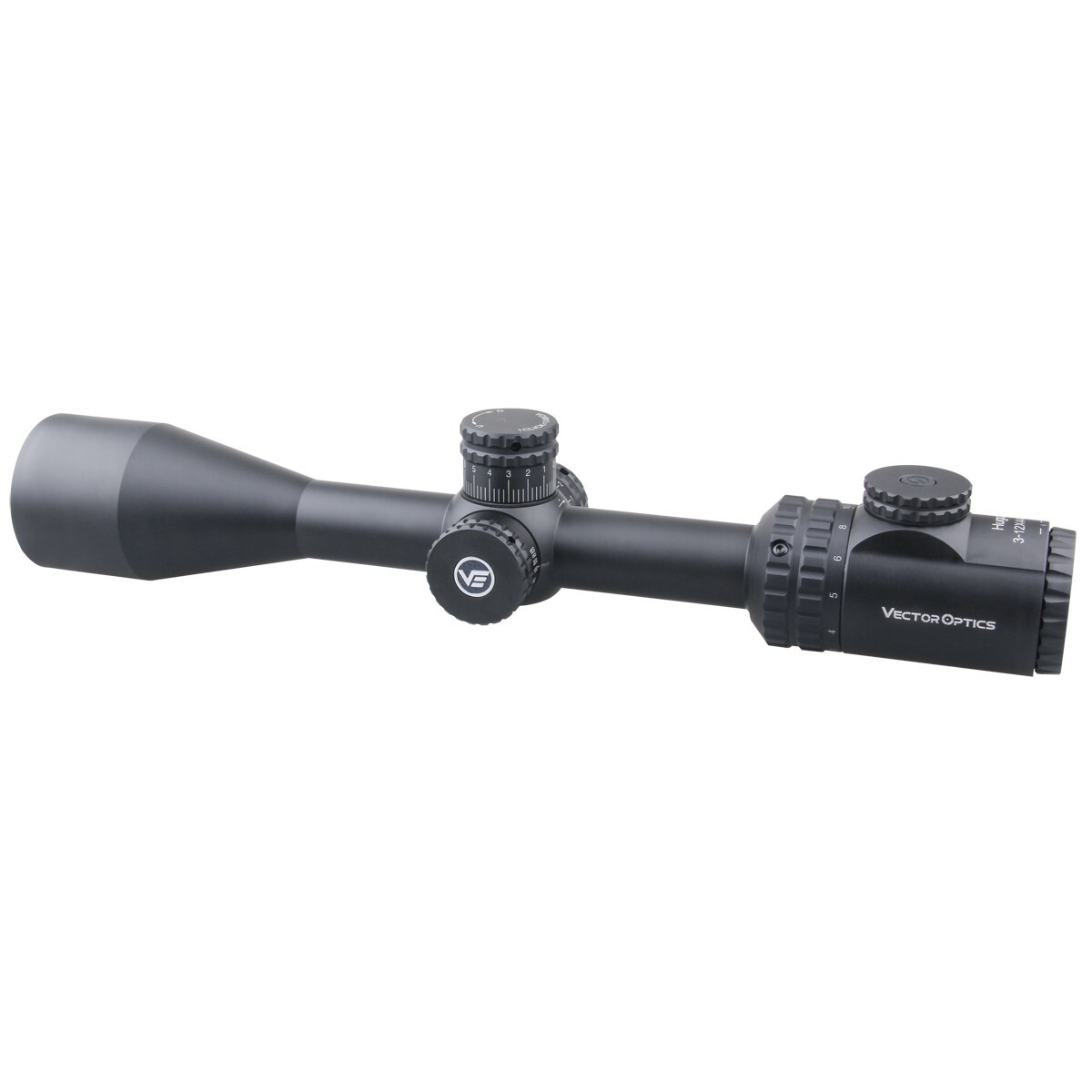

Vector Optics Hugo 3-12X44GT

VO Hugo Acom Diagram 2

  • Magnification: 3-12x
  • Objective Lens Dia.: 44mm
  • Ocular Lens Dia.: 38mm / 1.5 inch
  • Ocular Lens Length: 60mm / 2.4 inch
  • Exit Pupil: 14.6-4.0mm
  • Optics Coating: Fully-multi coat
  • Field of View: 31.5-7.9 feet@100 yds
  • Eye Relief: 105--100mm / 4.1-3.9 inch
  • Length: 325mm / 12.8 inch
  • Weight: 620g / 21.9 ounce
  • Tube Dia.: 25.4mm 1“ Monotube

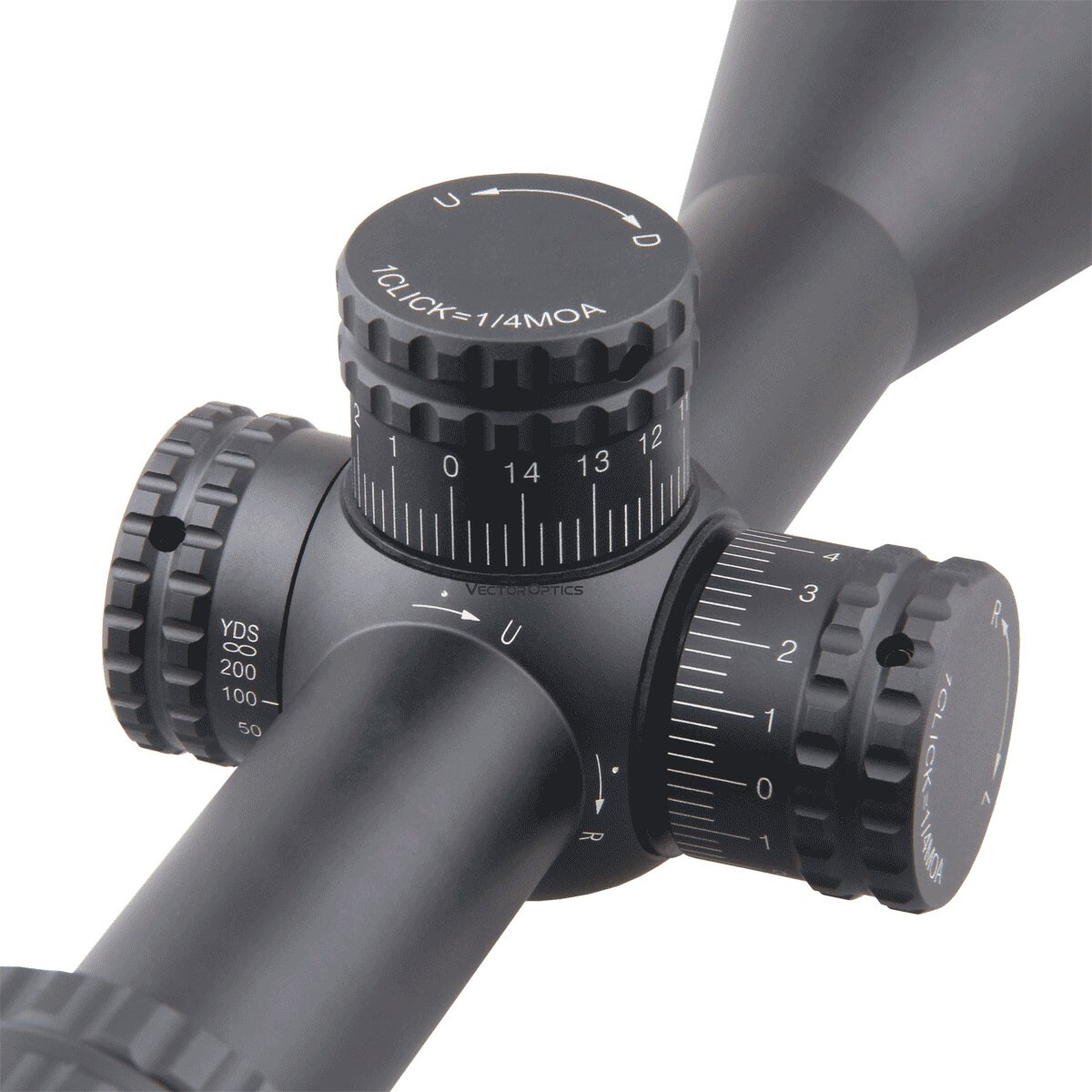

  • Click Value: 1/4 MOA
  • Elevation Range: 60MOA
  • Windage Range: 60MOA
  • Parallax Setting: 10 yards to infinite

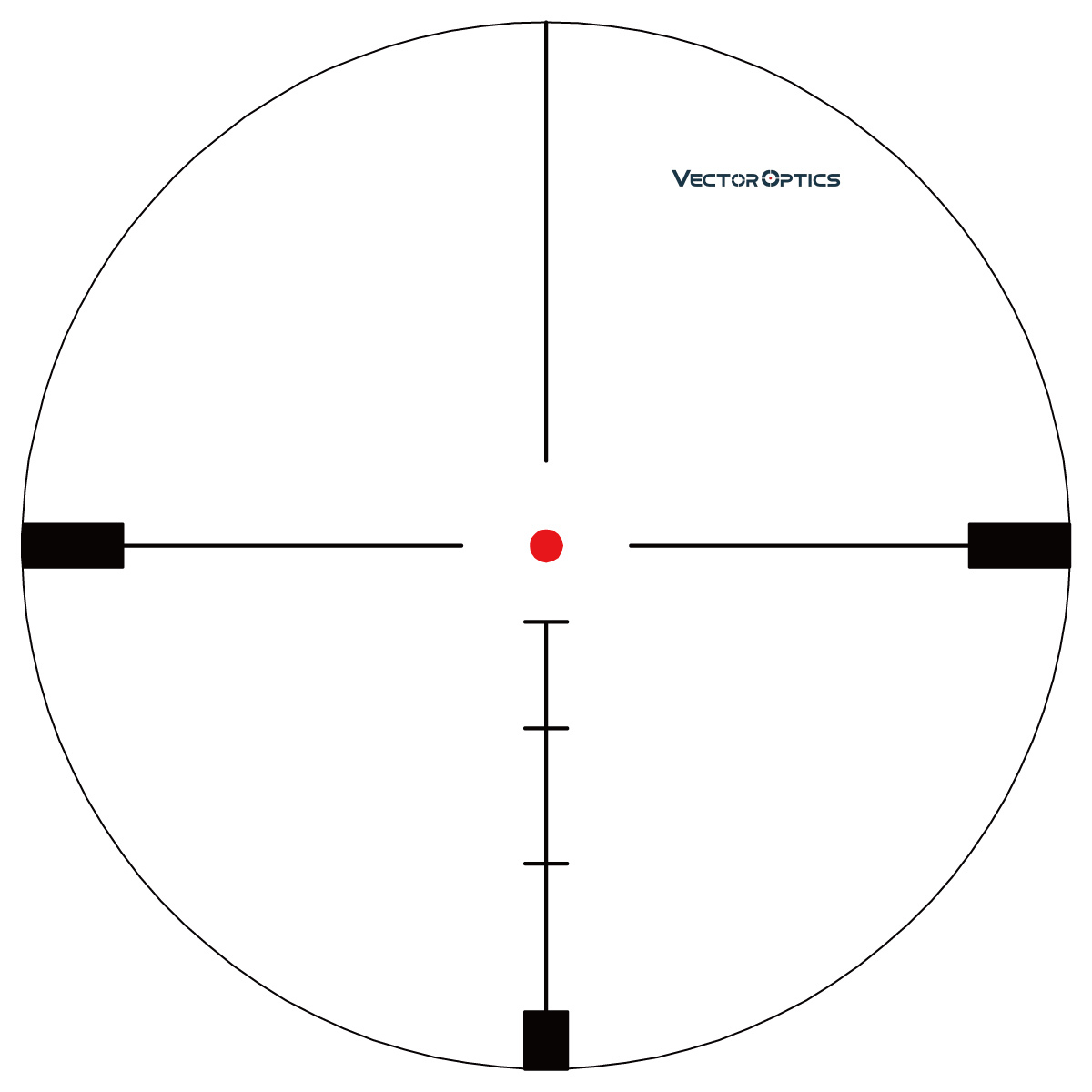

  • Reticle: VOI-10BDC
  • Illumination: 11 levels red+ 1 level NV
  • Battery Type: CR2032

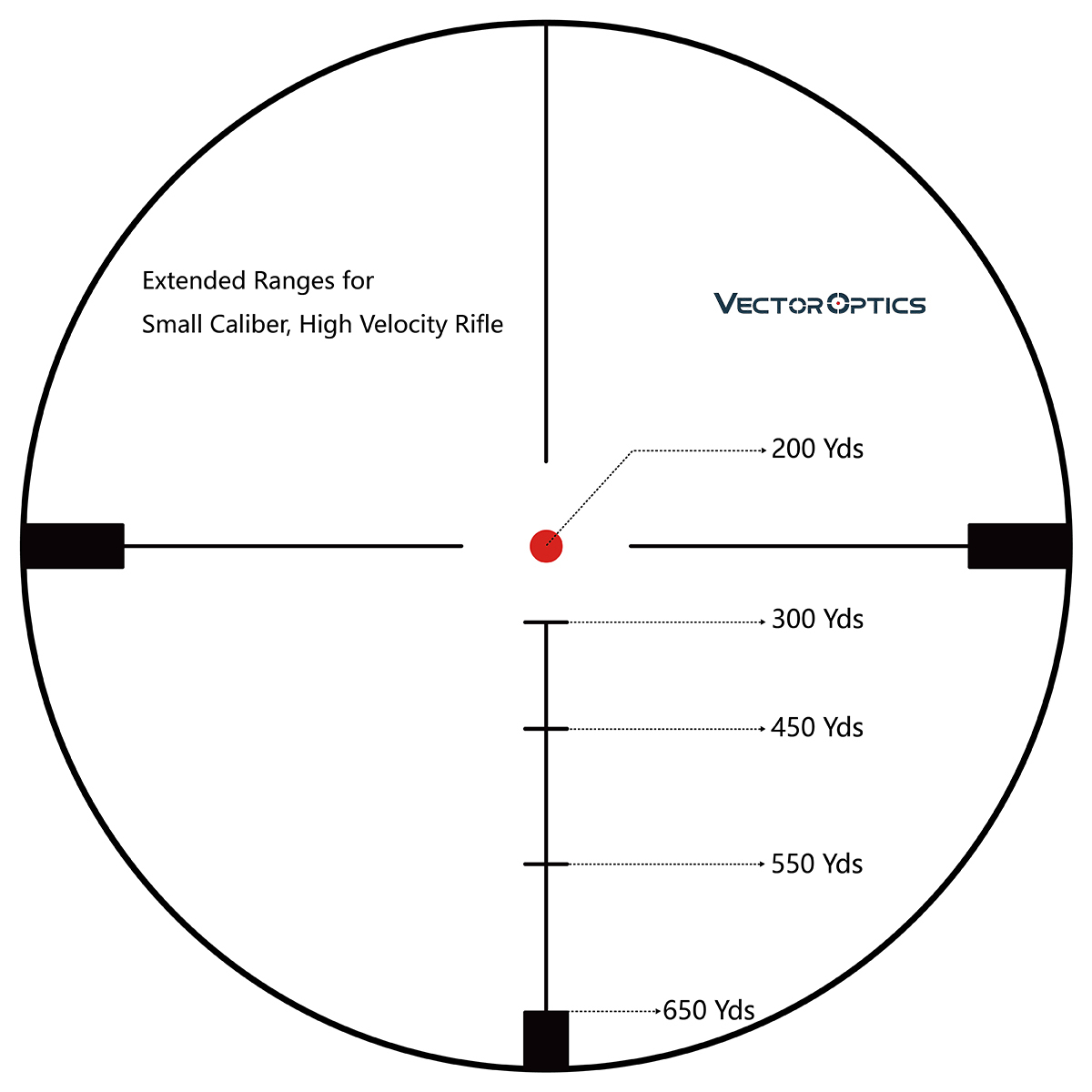

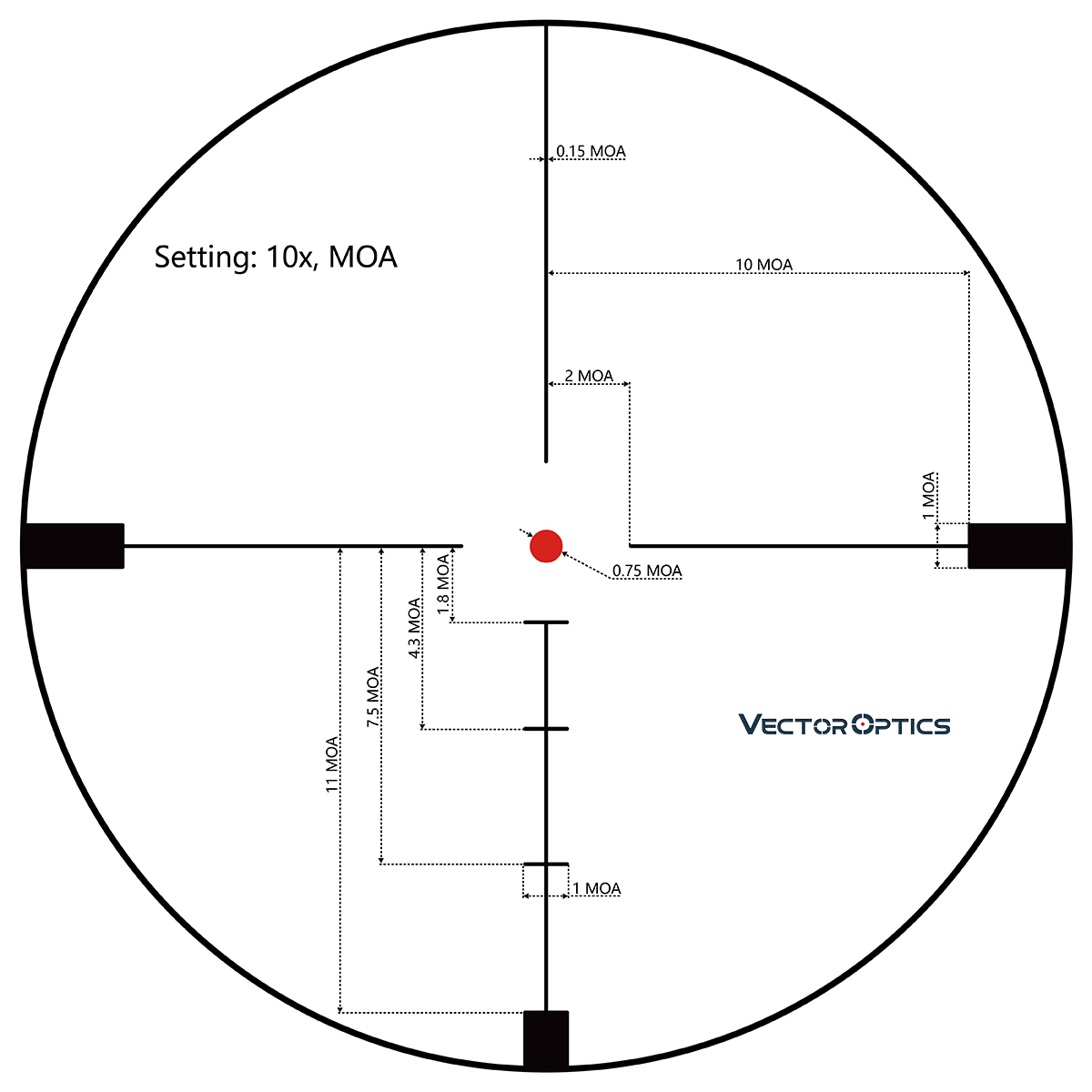

  • BDC & ranging reticle usage set at 10x power, big game, 22LR Rimfire and varmint rifles max to 600 yards range
  • Distance between objective lens part and middle turret: 48mm (1.9 inch)
  • Length of middle turret part: 37mm (1.5 inch)
  • Distance between middle turret part to power ring: 57mm (2.2 inch)
  • Side focus marks: 10, 15, 25, 50, 100, 200 and infinite yds
  • Shock tested to 750g and water proof
  • Fully nitrogen purged to eliminate any fogging of the lenses internally
  • High quality 6061 T6 aircraft grade aluminum
  • Diopter compensation from fast-focus eyepiece (+2 to -2)

(VO-SCOM-31)

SKU VO-SCOM-31
Brand Vector Optics
Unit Of Measure ea
