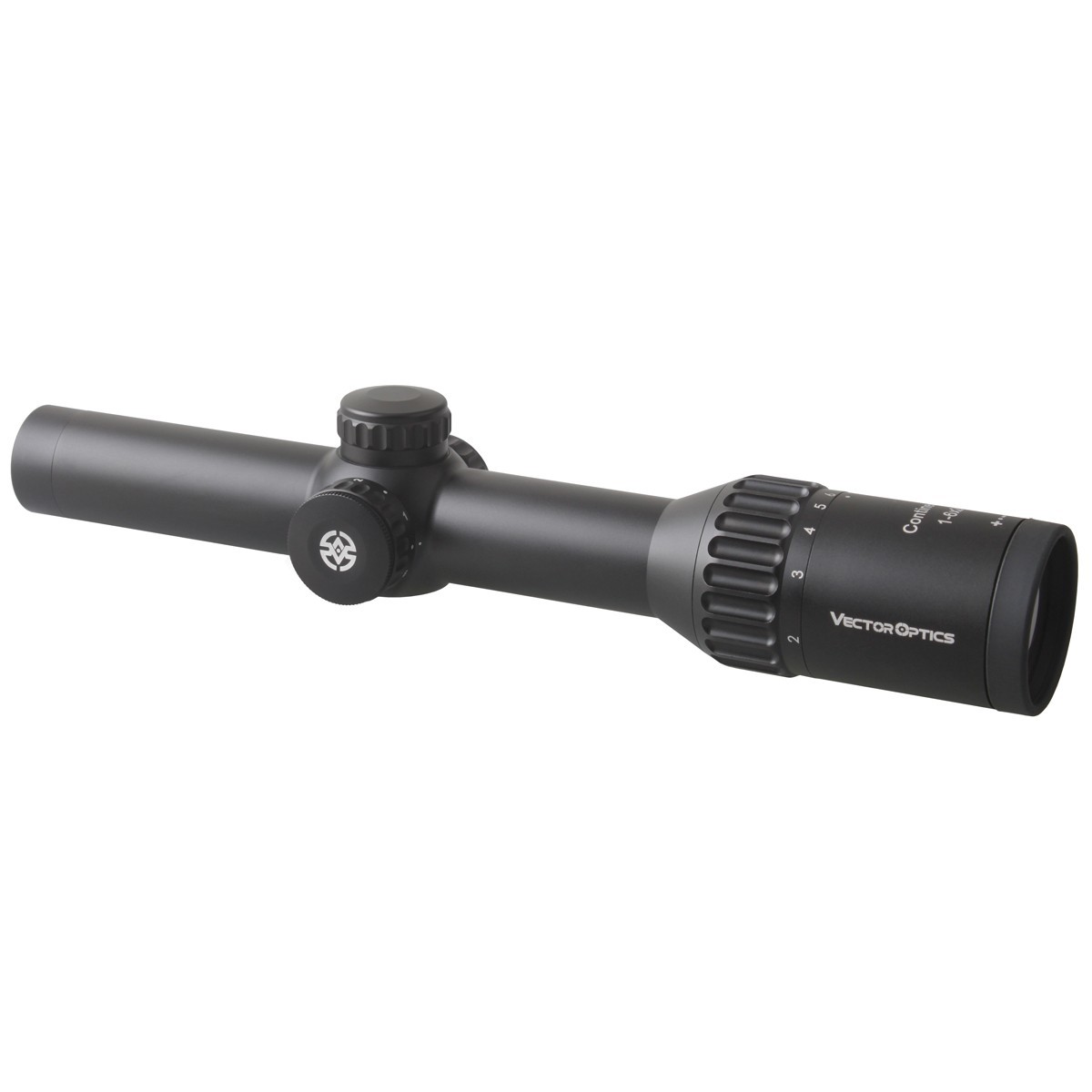

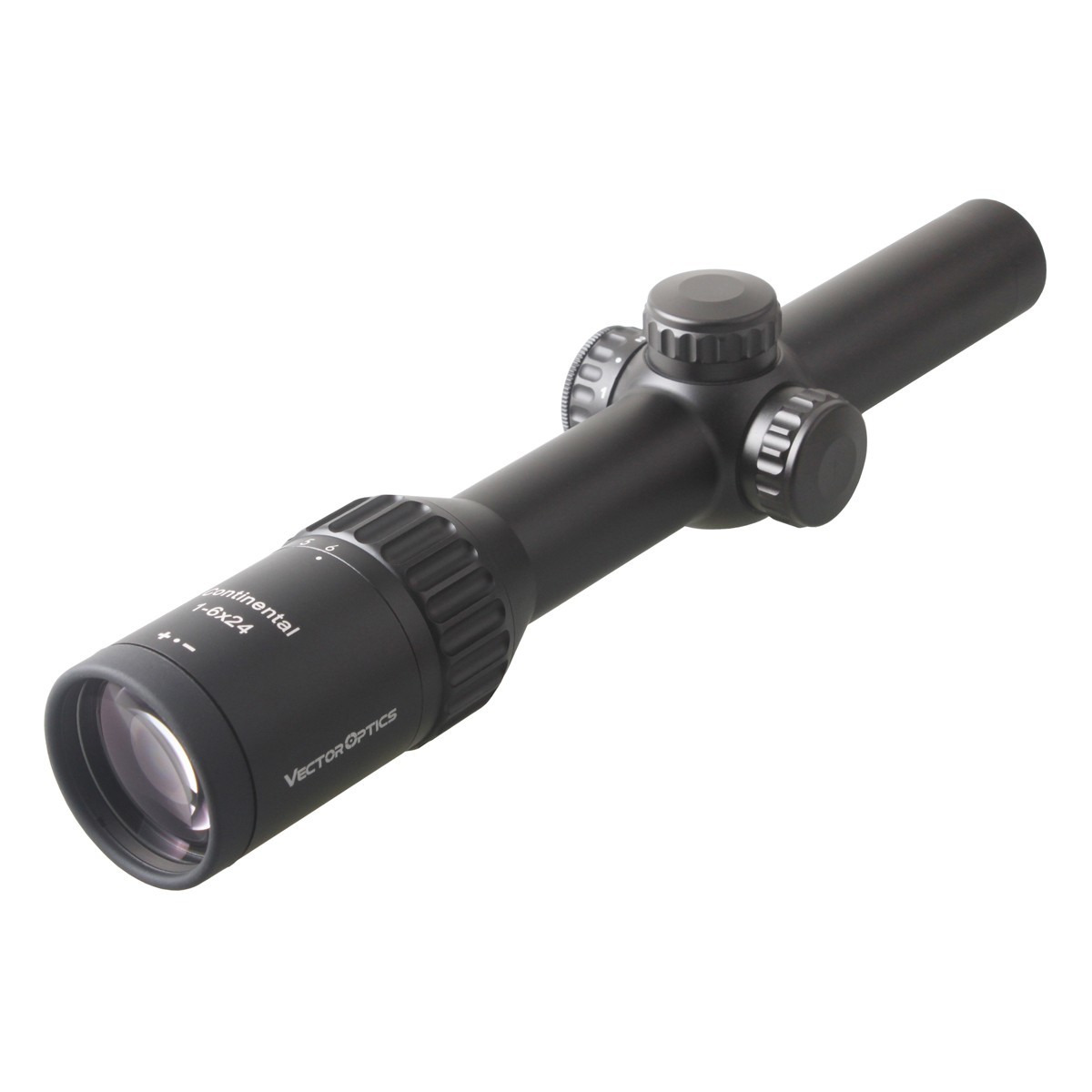

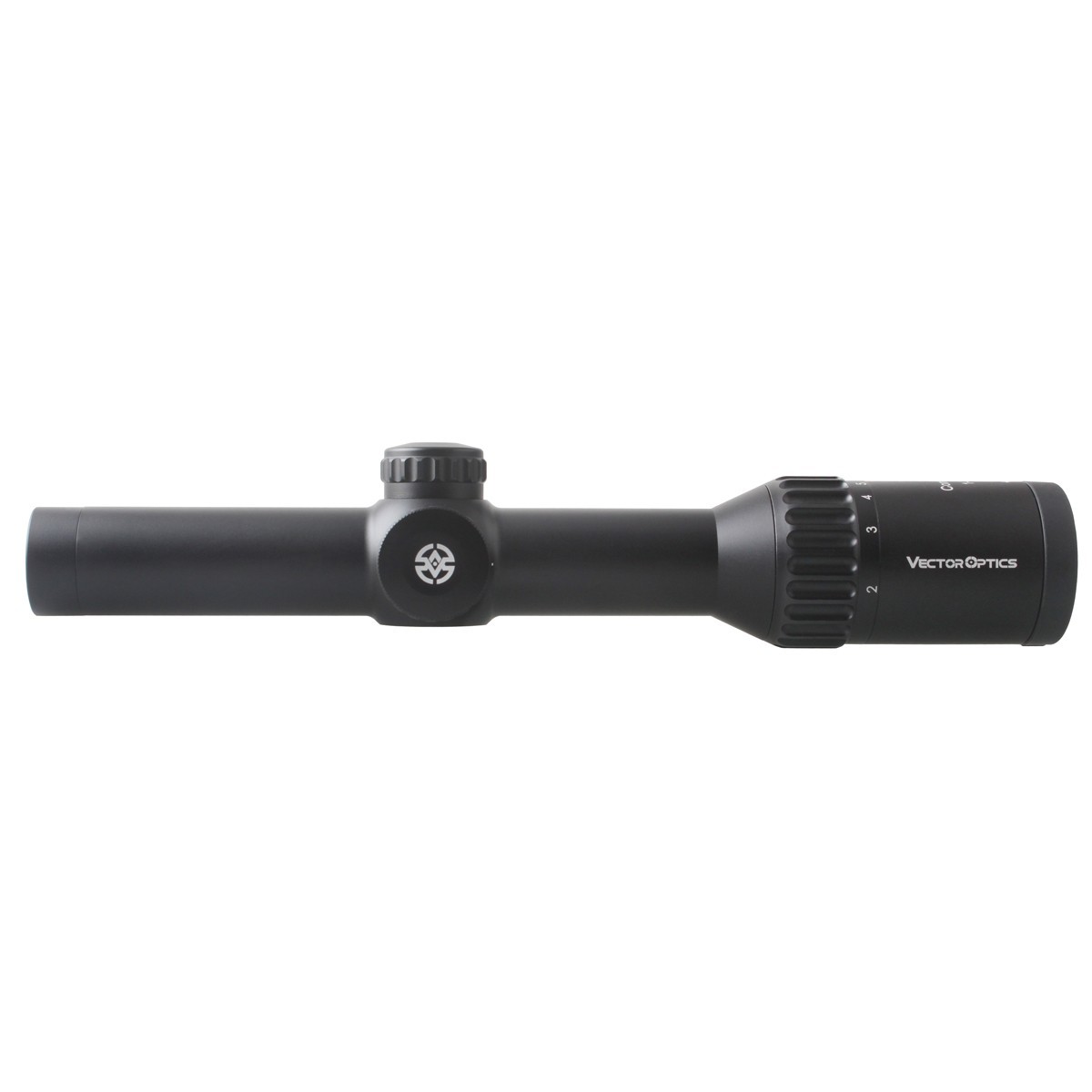

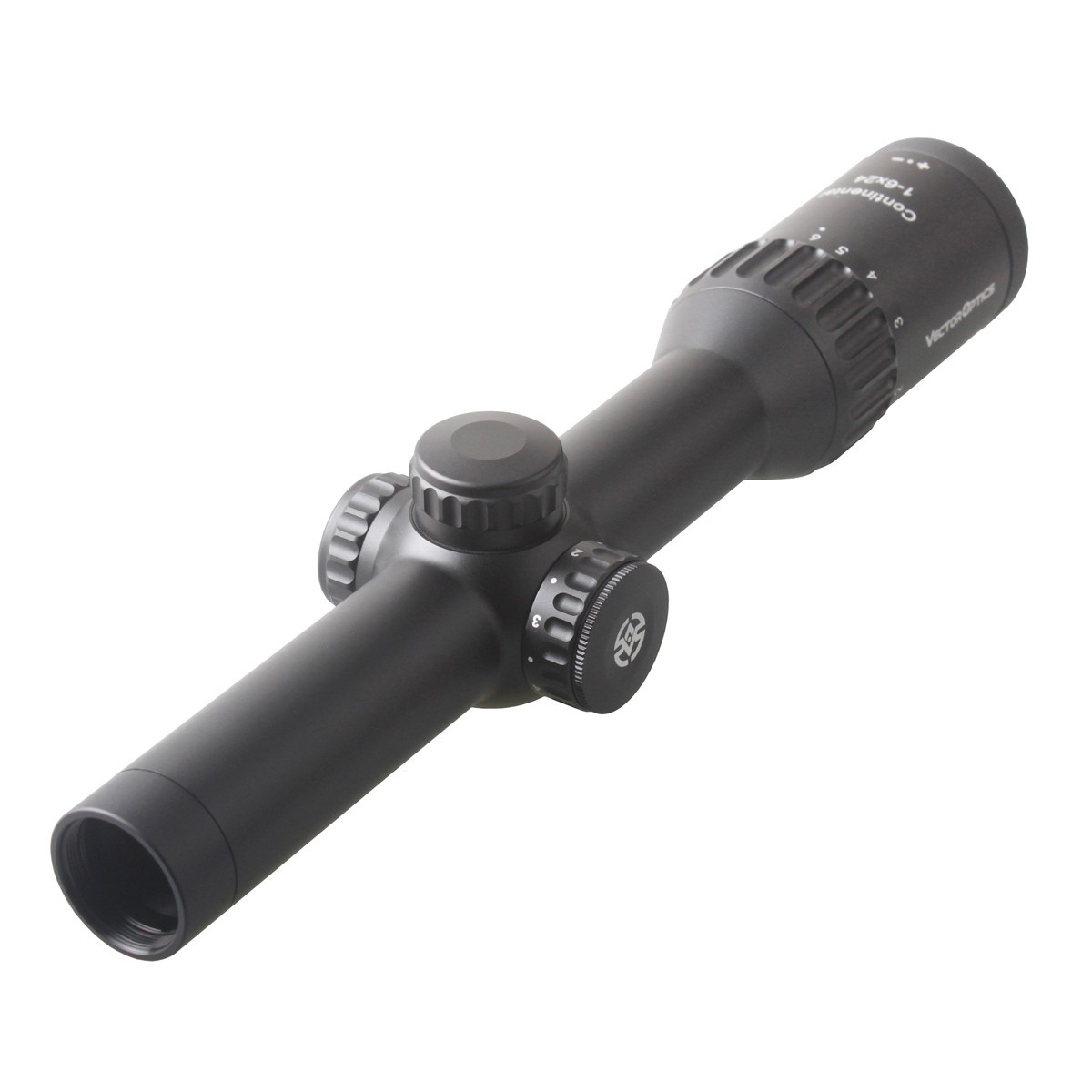

Using German Optics System Leads to a Crystal Clear Image, 30mm Monotube, Return-to-Zero Turret

Etched Glass #4 Reticle, 1/2 MOA Adjust, Center Dot Illumination



  • Magnification: 1-6x
  • Objective Lens Dia.:24mm
  • Ocular Lens Dia.:42mm (1.7 inch)
  • Ocular Lens Length: 54mm (2.1 inch)
  • Exit Pupil: 9.5-4.0mm
  • Optics Coating: Fully-multi coated
  • Field of View: 124.5-20.7 feet @ 100 yards
  • Field of View: 42-7.0 meters @ 100 meters
  • Eye Relief: 100mm (4.0 inch)
  • Length: 283mm (11.1 inch)
  • Weight: 480g (16.9 ounce)
  • Tube Dia.:30mm Monotube
  • Click Value: 1/2 MOA
  • Elevation Range: 140MOA
  • Windage Range: 140MOA
  • Parallax Setting: 100 yards
  • Reticle: Etched glass germany #4
  • Illumination: Six gear
  • Battery: CR2032
  • Distance between middle turret parts to power ring: 58mm (2.3 inch)
  • Shock tested to 750g, water proof at 300 meters and 54 degree
  • Nitrogen purged to eliminate any fogging of the lenses internally
  • Adjust plate is NOT fixed, after zeroing the scope pull up the turret and re-set to zero
  • High quality 6061 T6 aircraft grade aluminum

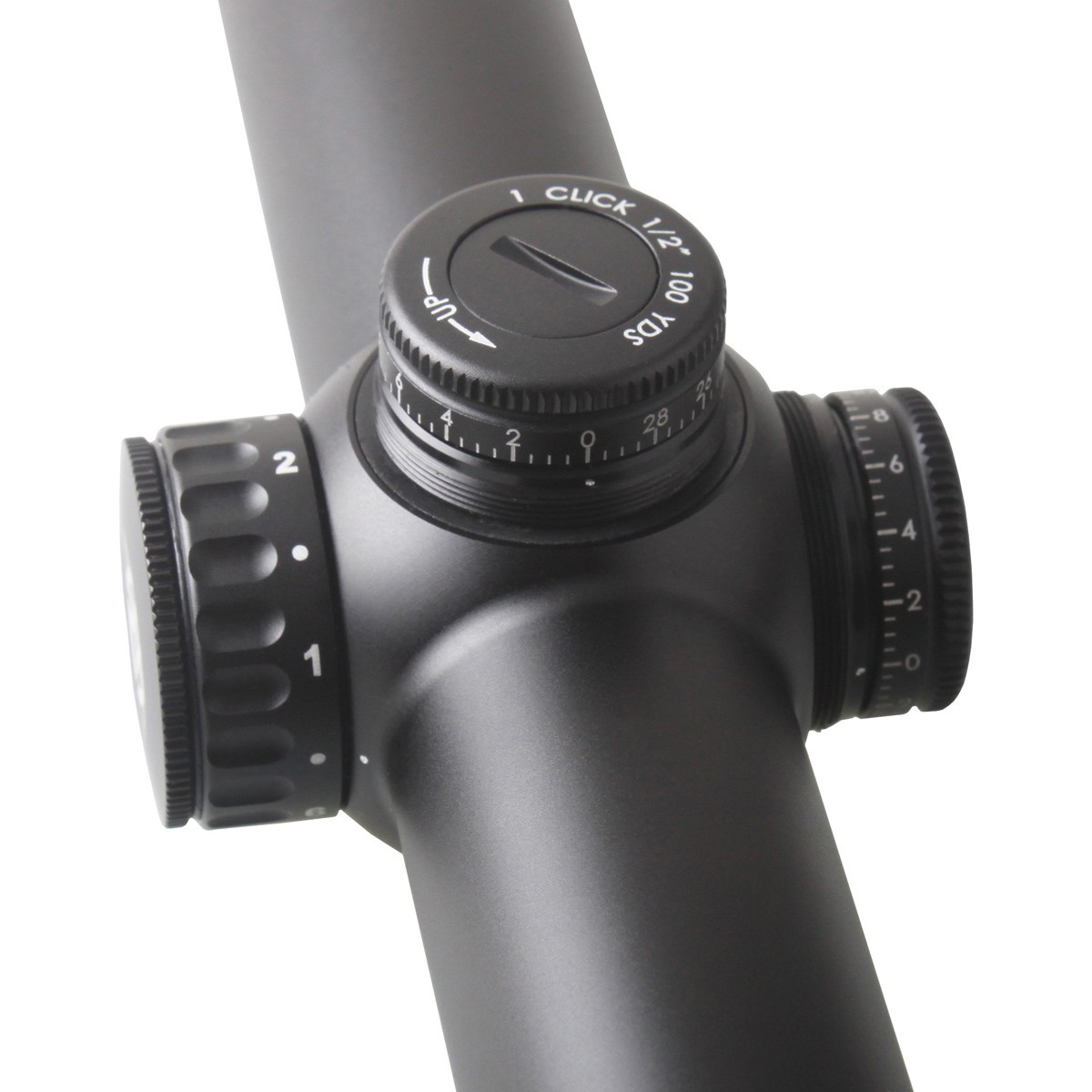

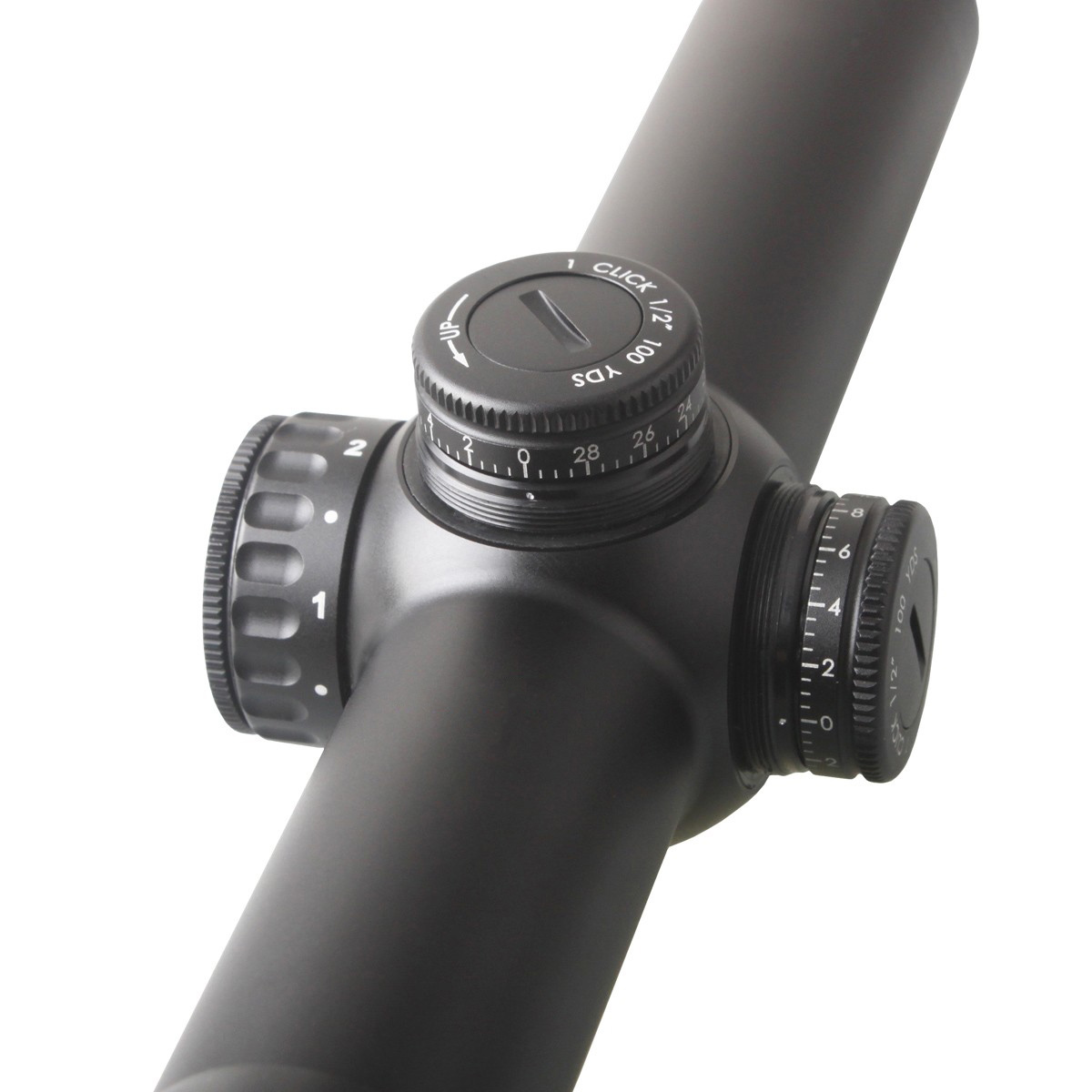

  • Turret lock feature: press down to lock without click movement
  • Diopter compensation from fast-focus eyepiece (+2 to -3)

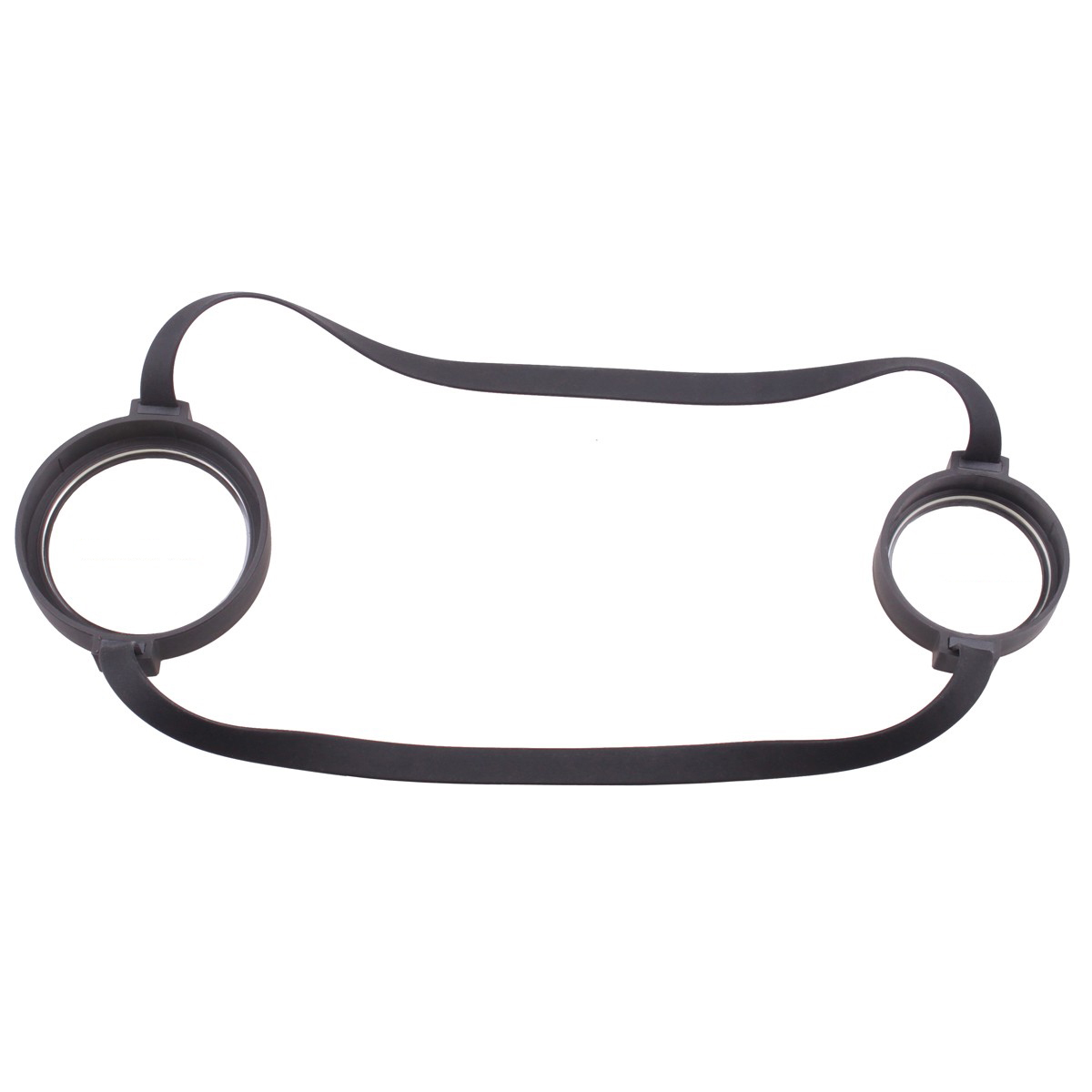

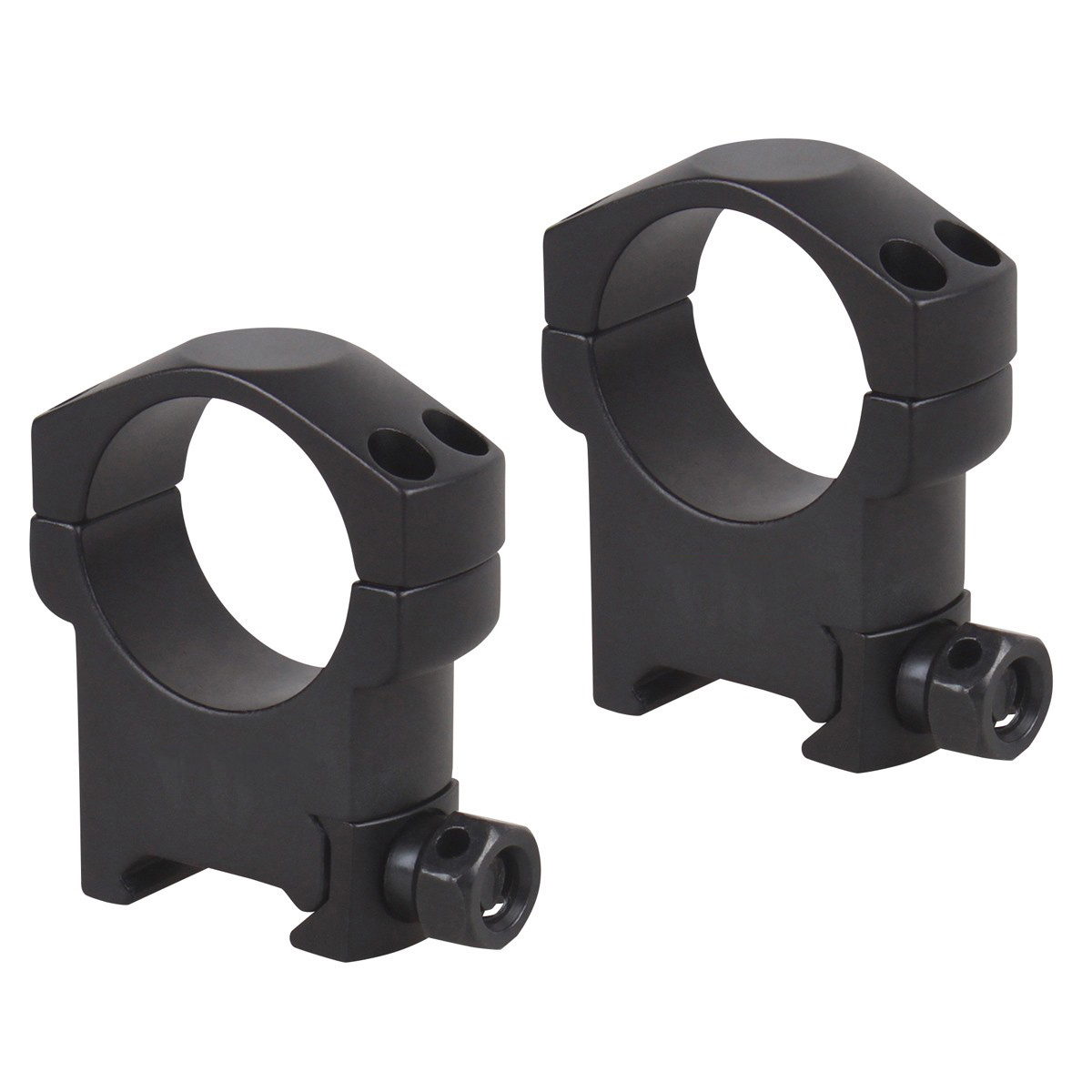

  • Including: 30mm picatinny high ring, lens caps and cleaning cloth etc.




Barcode # 700381148987
Brand Vector Optics
Unit Of Measure ea
